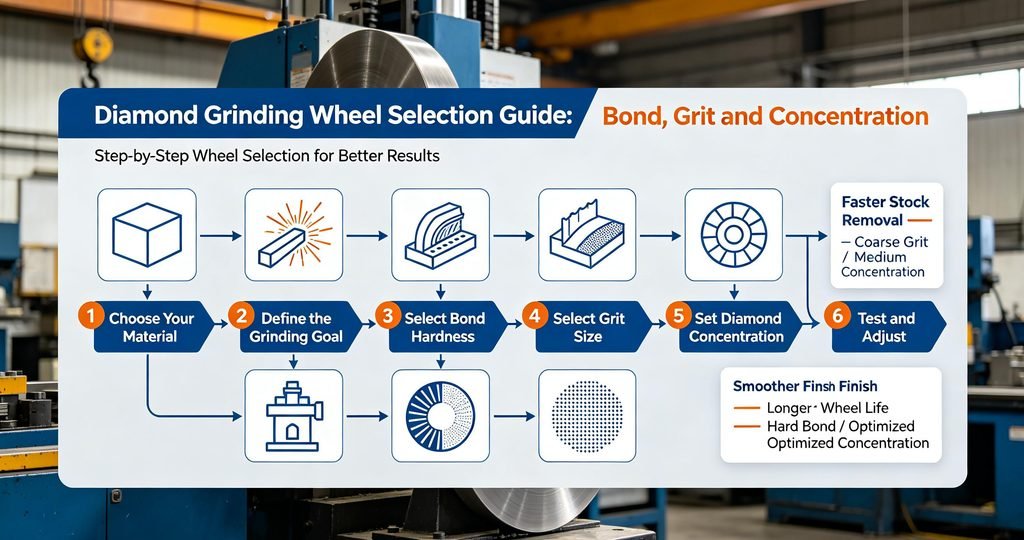

A diamond grinding wheel is not a single product; it is a combination of four variables working together. Get those variables right and the wheel cuts efficiently and lasts for thousands of parts. Get them wrong and you fight glazing, burn, and short wheel life from the first pass. This guide walks through bond, grit, concentration and bond hardness in the order that matters, then shows how to match a wheel to the job.
The four variables interact. Changing the bond changes how grit behaves; changing concentration changes heat; changing hardness changes how the wheel self-sharpens. Read them as one system, not four separate choices, and selection becomes straightforward.
1. Bond type for a diamond grinding wheel
The bond holds the diamond grain and controls how the wheel releases worn grit. It is the first thing to choose.
- Resin bond: sharp, cool cutting with a good finish. The first choice for carbide, PCD and precision finishing. See our resin bond diamond grinding disc.
- Metal bond: strong and long-lasting, preferred for glass, ceramics, stone and heavy stock removal. See our metal bonded diamond dressing wheels.
- Vitrified bond: free-cutting, heat-resistant and dressable, ideal for precision and creep-feed grinding. Our vitrified bond diamond cup grinding wheel is a typical example.
- Electroplated: a single layer of diamond on a machined steel form, ideal for complex profiles and one-off shapes. See the electroplated vs bonded diamond tools guide.
- Ceramic / hybrid: combines free cutting with high durability for demanding production jobs, such as our ceramic bonded diamond CBN grinding disc.
For a deeper comparison of the two most common choices, see resin vs metal bond diamond wheels.
2. Grit size
Coarse grits remove material quickly with a rougher finish; fine grits deliver a better finish with far less removal. For a two-stage process, rough at 100# to 180# and finish at 400# to 1,500#. Grit sets the finish, but it also sets the load on the bond, so grit and bond must be chosen together. Grit selection is covered in full in our diamond grit guide.
| Stage | Typical grit range | Purpose |
|---|---|---|
| Roughing | 100# – 180# | Fast stock removal, establishes geometry |
| Semi-finish | 180# – 400# | Removes roughing scratches, sets tolerance |
| Finishing | 400# – 1,500# | Fine surface finish, edge quality |
3. Concentration
Concentration is the amount of diamond packed into the bond of the wheel, and it is often confused with grit. Higher concentration means more cutting points, a longer life and better form-holding, but it costs more and generates more heat. Lower concentration runs cooler and is often better for wide contact areas or where coolant is limited. For most production grinding, a mid-range concentration gives the best balance of life and cost.
A quick way to remember the difference: grit is how fine each diamond particle is; concentration is how many of them are in the bond. Two wheels can share a grit and behave completely differently because their concentration differs.
4. Bond hardness (grade)
Bond hardness is about self-sharpening, and it follows the same logic as hardness in abrasive tooling. A softer bond releases worn grain sooner, which keeps the wheel sharp — good for hard, dense workpieces and for machines that cannot push hard. A harder bond holds the grain longer, giving better form retention and life on soft, abrasive materials, but it can glaze if the wheel is not dressed regularly.
Matching a diamond grinding wheel to the job
- Carbide tool grinding: resin bond, fine grit, medium concentration, medium-hard bond.
- Glass and ceramic: metal bond, coarse-to-medium grit, higher concentration.
- Precision and creep-feed: vitrified bond, fine grit, medium concentration, dressable.
- Complex one-off profiles: electroplated, grit matched to the finish required.
- Stone and quartz: metal or flexible resin, progressive grits, moderate concentration.
If the wheel is glazing or burning instead of cutting, the fix usually sits in bond hardness or coolant, not in the grit. See our troubleshooting guide to diamond grinding wheel troubleshooting and the steps to dress a diamond grinding wheel.
Machine and coolant matter too
The best wheel still underperforms on a machine that is not rigid or not supplied with adequate coolant. Rigidity controls whether a fine edge survives; coolant controls heat at the contact zone, which is what destroys resin bonds and fine grits first. Before blaming the wheel, check spindle runout, wheel balance, coolant flow and concentration.
5 common selection mistakes
- Confusing grit with concentration. They are different variables; specifying one does not set the other.
- Choosing a hard bond for hard material. It is usually the opposite — a hard workpiece needs a softer bond to stay sharp.
- Ignoring coolant. Resin bonds and fine grits die first without adequate flow at the contact zone.
- Never dressing the wheel. A glazed wheel cuts by friction, which burns the part and the bond.
- Blaming the wheel for a machine problem. Runout, balance and rigidity ruin fine edges before any grit choice ever shows up.
Need help specifying a wheel?
Send us the material, the machine, the finish you need and the production volume, and our engineers will recommend a bond, grit and concentration combination. Browse our diamond grinding wheel range or contact us with your application.
